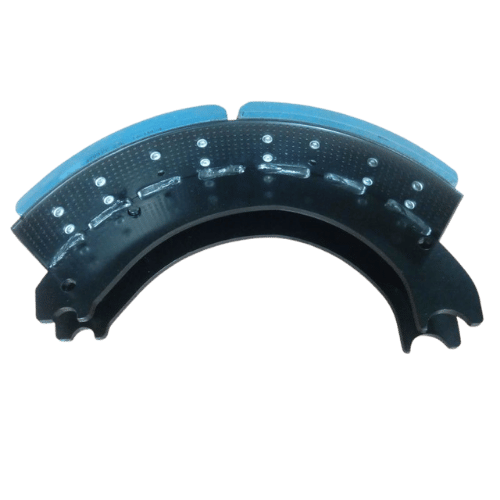

Brake Shoes and Lining 4709

The 4709 brake shoe with lining is engineered for high-demand braking systems, featuring a robust Q-style 16.5″ x 7″ design. Paired with premium 20K or 23K friction lining, this kit ensures superior stopping power, reduced fade, and long service life. Ideal for rear axle applications on heavy-duty trucks, tractors, and trailers. Built to OE specifications and compatible with Meritor brake systems.

Technical Specifications:

• Brake Size: 16.5″ x 7″
• Brake Shoe Style: Q-Style
• Application: Rear axle – Truck, Tractor, Trailer
• Friction Lining: Premium 20K or 23K rated
• Lining Type: Fras-Le AF555-1 or equivalent
• FMSI Reference: 4709
• OE Manufacturer: Meritor
• Brake Surface Diameter: 16.5″ (41.91 cm)
• Brake Shoe Width: 7″ (17.78 cm)
• Rivet Holes: 28
• Rivet Size: 1/4″
• Hardware Kit Compatibility: MKT 4709 Series
• Weight (with lining): Approx. 4.8–5.2 kg

‍
