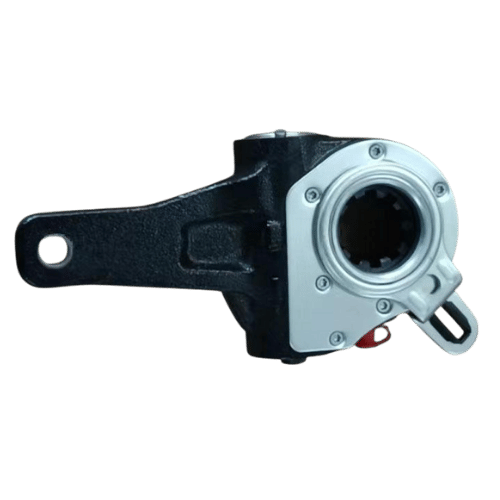

40020216 Haldex S-ABA automatic slack adjuster

The 40020216 Haldex S‑ABA Automatic Slack Adjuster is designed to maintain consistent brake shoe clearance automatically, reducing the need for manual adjustments and enhancing safety on the road. This model features a 1-1/2″ spline diameter with 10 splines, a 6″ arm length, and a 0° body angle and offset—making it a dependable solution for straightforward brake system alignments. With a 1/2″ arm hole diameter, it fits seamlessly into a wide range of commercial vehicle brake assemblies.

Technical Specifications:

• Spline Diameter – Spline Count: 1-1/2″ – 10
• Arm Length: 6″
• Body Angle: 0°
• Offset: 0
• Arm Hole Diameter: 1/2″

Key Features:

• Self-adjusting slack adjuster with Haldex S‑ABA technology
• 10-spline, 1-1/2″ diameter for secure and accurate fit
• 6″ arm length for extended reach applications
• Neutral body angle and offset for easy alignment
• Low-maintenance design improves brake efficiency and lifespan

‍
