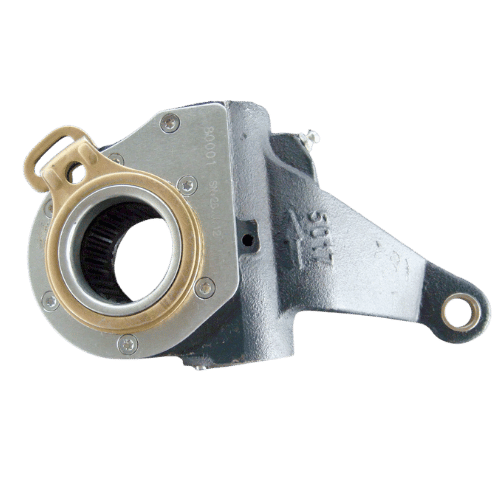

80001 Haldex S-ABA automatic slack adjuster

Slack adjuster

The 80001 Haldex S‑ABA Automatic Slack Adjuster is engineered for Daimler commercial vehicles to ensure optimal, self-adjusting brake operation. Featuring Haldex’s proven S‑ABA system, this unit automatically maintains correct brake clearance, helping reduce wear, downtime, and maintenance needs. With a 26-tooth spline (DIN 5480), +56 mm offset, and a +15° inclination, it delivers accurate brake alignment. The compact double-bent control arm (short, R = 65 mm) fits into tight brake assemblies, making it ideal for demanding fleet environments where precision and durability matter.

Technical Specifications:

  • Boxed: No
  • Casting: 5017
  • Control Unit: 74527
  • Spline Type: N42x1.5x13H (DIN 5480)
  • Application: Daimler
  • Number of Holes: 1
  • Length (L1): 145 mm
  • Spline Teeth: 26
  • Bushing: 14 mm
  • Offset: +56 mm
  • Inclination: +15°
  • Control Arm: Double bent (short; R = 65 mm)

Key Features:

  • Self-adjusting Haldex S‑ABA brake system
  • Designed for Daimler commercial vehicle platforms
  • DIN 5480-compliant 26-spline fitment
  • +56 mm offset and +15° inclination for precise positioning
  • Short, double-bent R65 control arm for compact setups
  • Boosts reliability, reduces manual maintenance, and improves brake longevity
