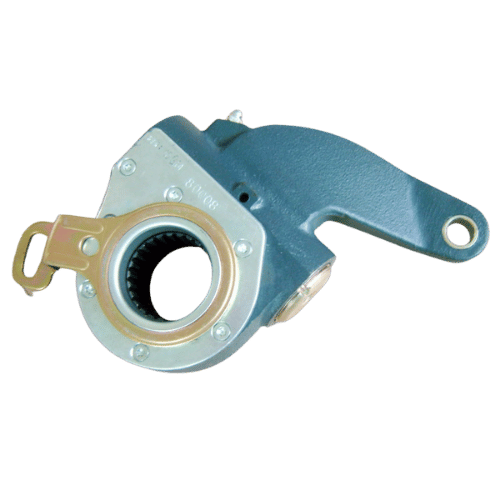

80008 Haldex S-ABA automatic slack adjuster

The 80008 Haldex S‑ABA Automatic Slack Adjuster is built for Daimler commercial vehicles to deliver consistent, self-regulating brake performance. Engineered with Haldex’s trusted S‑ABA technology, it ensures the ideal brake shoe clearance is automatically maintained, helping reduce wear, improve safety, and minimize maintenance needs. This unit is configured with a 26-spline DIN 5480 fitment, a +37 mm offset, and a +34° inclination—providing accurate alignment for various axle positions. The medium double-bent control arm (R = 78 mm) enables compatibility with mid-range brake assemblies, making it an ideal solution for fleets demanding both precision and durability.

Technical Specifications:

• Boxed: No
• Casting: 5016
• Control Unit: 74528
• Spline Type: N42x1.5x13H (DIN 5480)
• Application: Daimler
• Number of Holes: 1
• Length (L1): 145 mm
• Spline Teeth: 26
• Bushing: 14 mm
• Offset: +37 mm
• Inclination: +34°
• Control Arm: Double bent (medium; R = 78 mm)

Key Features:

• Haldex S‑ABA technology for automatic brake adjustment
• Designed specifically for Daimler heavy-duty platforms
• 26-spline DIN 5480 connection for precise installation
• +37 mm offset and +34° angle for proper axle alignment
• Medium double-bent (R78) arm fits a wide range of setups
• Boosts brake reliability while reducing manual maintenance

‍
