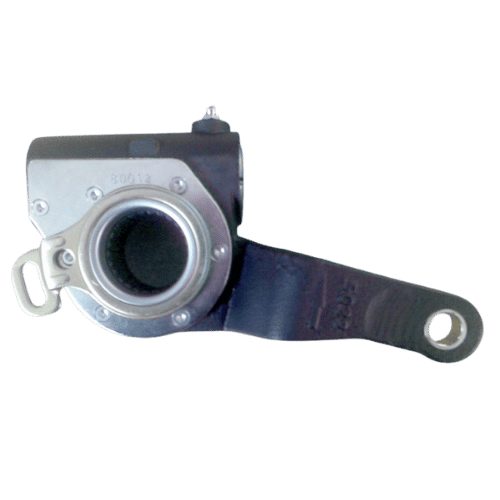

80012 Haldex S-ABA automatic slack adjuster

The 80012 Haldex S‑ABA Automatic Slack Adjuster is designed for Daimler commercial vehicles to deliver consistent, self-adjusting brake performance. Built with Haldex’s advanced S‑ABA technology, this unit automatically maintains optimal brake clearance, reducing wear and manual servicing. It features a 26-tooth spline (DIN 5480 standard), -42 mm offset, and a steep +105° inclination—ideal for unique brake setups requiring compact yet precise installation. The short double-bent control arm (R = 65 mm) allows for easy integration into tight spaces, making the 80012 a dependable choice for efficient fleet maintenance.

Technical Specifications:

• Boxed: No
• Casting: 5032
• Control Unit: 74527
• Spline Type: N42x1.5x13H (DIN 5480)
• Application: Daimler
• Number of Holes: 1
• Length (L1): 145 mm
• Spline Teeth: 26
• Bushing: 14 mm
• Offset: -42 mm
• Inclination: +105°
• Control Arm: Double bent (short; R = 65 mm)

Key Features:

• Automatic slack adjustment with S‑ABA system
• Built for Daimler commercial and fleet vehicle applications
• 26-spline DIN standard ensures reliable engagement
• -42 mm offset and +105° inclination for specialized mounting angles
• Short R65 control arm for compact brake assemblies
• Reduces downtime and extends brake component life
• Backed by Haldex quality for long-term performance

‍
