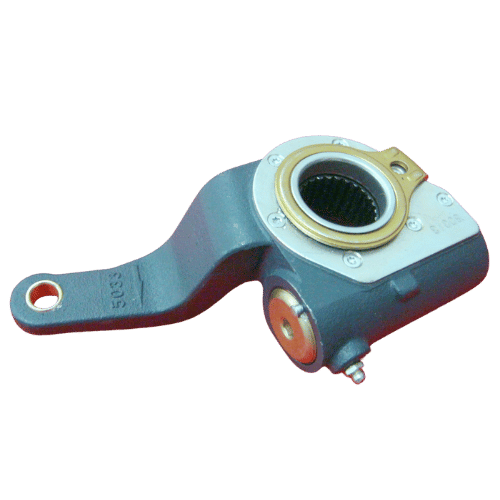

80013 Haldex S-ABA automatic slack adjuster

Slack adjuster

The 80013 Haldex S‑ABA Automatic Slack Adjuster is purpose-built for Daimler heavy-duty vehicles, offering reliable, self-regulating brake performance with minimal maintenance. Engineered with 26 splines conforming to DIN 5480 standards, it ensures secure and accurate engagement. With a +42 mm offset and a +105° inclination, it accommodates specialized brake configurations while maintaining proper alignment. The short double-bent control arm (R = 65 mm) allows for installation in compact spaces. Haldex’s S‑ABA technology automatically maintains correct shoe-to-drum clearance, helping extend component life and reduce downtime in demanding fleet environments.

Technical Specifications:

  • Boxed: No
  • Casting: 5033
  • Control Unit: 74527
  • Spline Type: N42x1.5x13H (DIN 5480)
  • Application: Daimler
  • Number of Holes: 1
  • Length (L1): 145 mm
  • Spline Teeth: 26
  • Bushing: 14 mm
  • Offset: +42 mm
  • Inclination: +105°
  • Control Arm: Double bent (short; R = 65 mm)

Key Features:

  • Self-adjusting slack adjuster using Haldex S‑ABA technology
  • Engineered for Daimler commercial vehicle applications
  • 26-spline DIN-standard connection ensures precise fit
  • Unique +105° inclination for specialized brake configurations
  • Compact, double-bent control arm (R65) for tight installations
  • Reduces maintenance needs and enhances braking reliability
  • Trusted Haldex quality for long-lasting fleet performance
