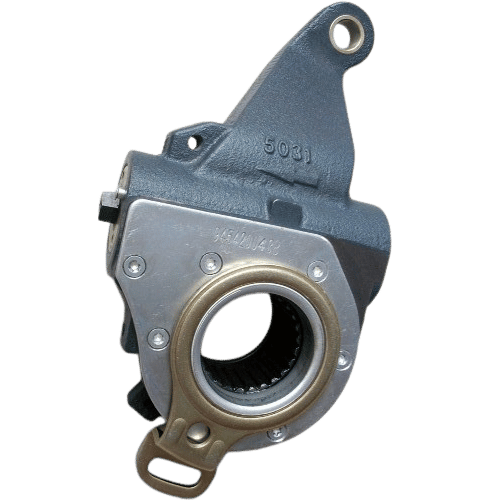

80014C Haldex automatic slack adjuster

Slack adjuster

The 80014C Haldex Automatic Slack Adjuster is engineered for Daimler commercial vehicles, delivering consistent, self-regulating brake performance. With Haldex's proven technology, this model maintains optimal brake shoe clearance, reduces wear, and minimizes the need for manual adjustments. Built with a 26-tooth spline (DIN 5480 standard), +56 mm offset, and a +15° inclination, this unit ensures precise alignment and easy fitment. The short double-bent control arm (R = 65 mm) allows for compact installation in tight brake configurations. Ideal for fleets seeking dependable performance and long service life.

Technical Specifications:

  • Boxed: Yes
  • Casting: 5031
  • Control Unit: 74527
  • Spline Type: N42x1.5x13H (DIN 5480)
  • Application: Daimler
  • Number of Holes: 1
  • Length (L1): 145 mm
  • Spline Teeth: 26
  • Bushing: 14 mm
  • Offset: +56 mm
  • Inclination: +15°
  • Control Arm: Double bent (short; R = 65 mm)

Key Features:

  • Self-adjusting slack adjuster for optimized brake performance
  • Specifically designed for Daimler heavy-duty applications
  • 26-spline DIN 5480 fitment ensures secure installation
  • +56 mm offset and +15° inclination for precision alignment
  • Short R65 control arm for compact brake configurations
  • Haldex reliability trusted in fleet and commercial vehicle sectors
