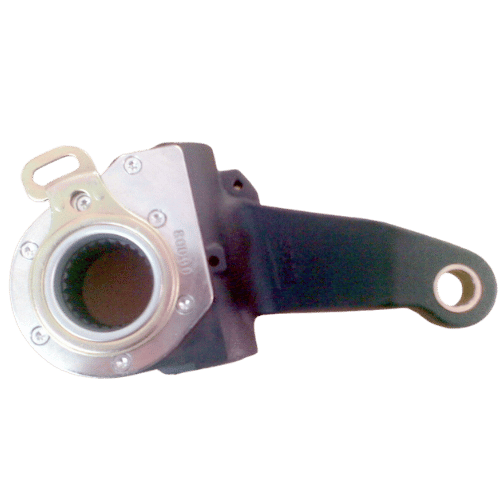

80030 Haldex S-ABA automatic slack adjuster

The 80030 Haldex S‑ABA Automatic Slack Adjuster is engineered to deliver consistent, self-regulating brake operation for Daimler commercial vehicles. This unit features a 26-tooth spline with a DIN 5480 standard fitment, -56 mm offset, and +15° inclination, making it ideal for accurate alignment and secure installation. Its compact double-bent control arm (R = 65 mm) fits easily into tight configurations. Haldex's S‑ABA technology ensures automatic adjustment of brake shoe-to-drum clearance, reducing manual maintenance and extending brake life—perfect for fleets demanding reliable and efficient braking systems.

Technical Specifications:

• Boxed: No
• Casting: 5018
• Control Unit: 74527
• Spline Type: N42x1.5x13H (DIN 5480)
• Application: Daimler
• Number of Holes: 1
• Length (L1): 145 mm
• Spline Teeth: 26
• Bushing: 14 mm
• Offset: -56 mm
• Inclination: +15°
• Control Arm: Double bent (short; R = 65 mm)

Key Features:

• S‑ABA automatic adjustment system for consistent braking
• Designed for Daimler heavy-duty applications
• 26-spline DIN standard fitment ensures precise installation
• -56 mm offset and +15° inclination for proper alignment
• Compact control arm fits space-constrained brake setups
• Reduces maintenance while enhancing safety and durability
• Haldex quality trusted by commercial vehicle operators worldwide

‍
