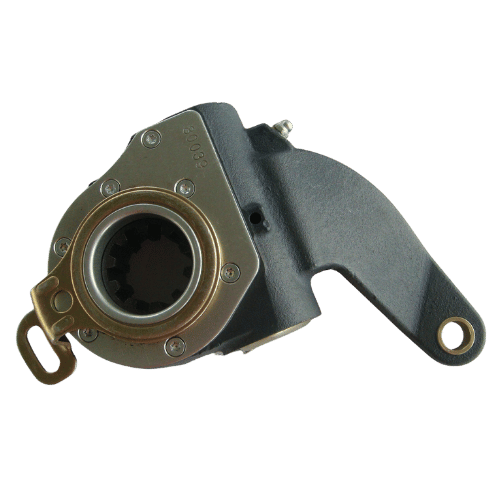

80039 Haldex automatic slack adjuster for KAMAZ

The 80039 Haldex Automatic Slack Adjuster is specially engineered for Kamaz commercial vehicles, offering reliable, maintenance-free brake adjustment. With Haldex’s proven technology, this slack adjuster maintains consistent brake shoe-to-drum clearance, improving safety and extending brake component life. It features a 10-spline SAE 1 1/2” shaft fitment, +37 mm offset, and a +34° inclination. The short double-bent control arm (R = 65 mm) allows for easy installation, especially in compact setups. Built to meet the demands of heavy-duty operation, the 80039 is a trusted solution for fleets looking to reduce downtime and ensure brake reliability.

Technical Specifications:

• Boxed: No
• Casting: 5016
• Control Unit: 74527
• Spline Type: SAE 1 1/2” – 10 spline
• Application: Kamaz
• Number of Holes: 1
• Length (L1): 145 mm
• Spline Teeth: 10
• Bushing: 14 mm
• Offset: +37 mm
• Inclination: +34°
• Control Arm: Double bent (short; R = 65 mm)

Key Features:

• Self-adjusting mechanism maintains optimal brake clearance
• Compatible with Kamaz heavy-duty vehicles
• SAE-standard 10-spline for secure fitment
• +37 mm offset and +34° angle for accurate alignment
• Compact control arm for space-limited applications
• Built by Haldex for durability, reliability, and performance in demanding environments

‍
