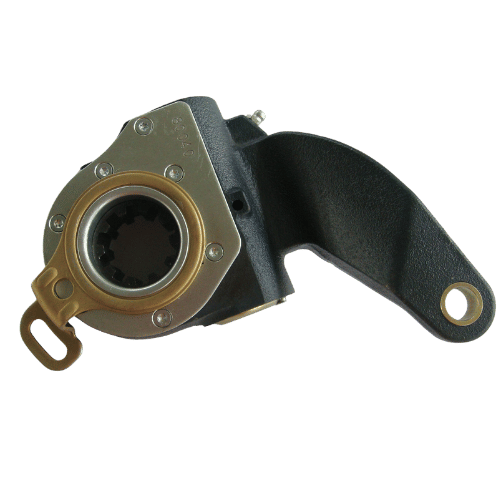

80040 Haldex automatic slack adjuster

Slack adjuster

The 80040 Haldex Automatic Slack Adjuster is purpose-built for Kamaz commercial vehicles, offering consistent, maintenance-free brake adjustment. Designed to ensure optimal brake shoe clearance, this model features a 10-tooth SAE 1-1/2" spline, -37 mm offset, and a +34° inclination for accurate alignment. The compact double-bent control arm (R = 65 mm) supports easy installation, especially in tight configurations. Backed by Haldex engineering, the 80040 helps reduce downtime, extend brake life, and improve overall safety for fleet operations.

Technical Specifications:

  • Boxed: No
  • Casting: 5015
  • Control Unit: 74527
  • Spline Type: SAE 1 1/2” – 10 spline
  • Application: Kamaz
  • Number of Holes: 1
  • Length (L1): 145 mm
  • Spline Teeth: 10
  • Bushing: 14 mm
  • Offset: -37 mm
  • Inclination: +34°
  • Control Arm: Double bent (short; R = 65 mm)

Key Features:

  • Automatic brake adjustment reduces manual maintenance
  • Designed specifically for Kamaz vehicle compatibility
  • SAE 10-spline configuration ensures secure fit
  • Offset and inclination optimized for precise alignment
  • Compact control arm fits tight spaces
  • Haldex durability for demanding commercial use
