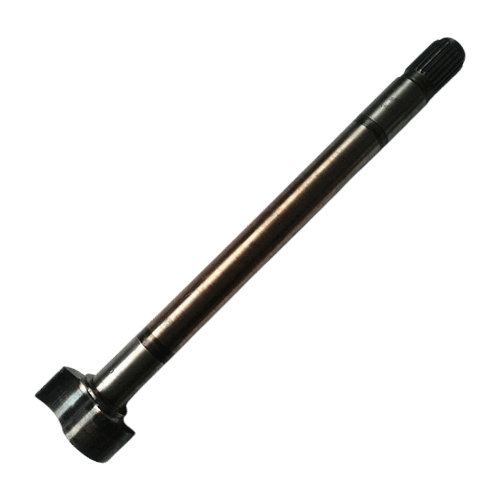

S-Camshaft 0509705221 BPW Length 627mm

The 0509705221 BPW S-Camshaft is engineered to meet the demands of heavy braking applications. Designed with a 42 mm outer diameter and a length of 627 mm, it features a robust SAE 1 1/2” – 10 Spline configuration for efficient performance. Ideal for BPW axle systems, this camshaft ensures dependable braking under heavy loads.

Specifications:

Dimensions and Size:

• Length 1: 509.5 mm
• Total Length: 627 mm
• Outer Diameter: 42 mm

Technical Specifications:

• Outer Diameter 1: 42 mm
• Tooth System: SAE 1 1/2” – 10 Spline
• Weight: 7.16 kg

‍
