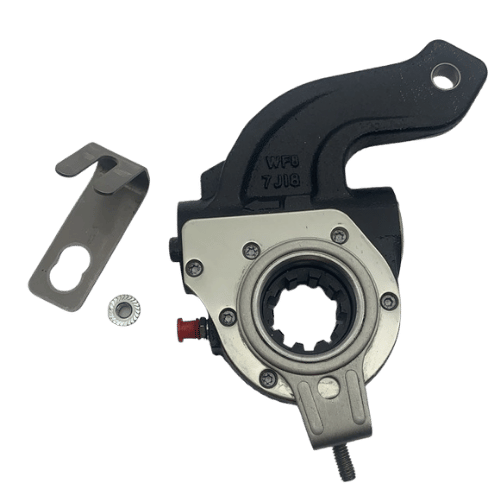

40020236 Haldex S-ABA Automatic Slack Adjuster

Slack Adjuster - 40020236 Haldex S-ABA Automatic Slack Adjuster

The 40020236 Haldex S‑ABA Automatic Slack Adjuster is built for consistent, maintenance-free brake performance in heavy-duty applications. Utilizing Haldex’s S‑ABA technology, this slack adjuster automatically regulates brake clearance, improving safety and reducing manual adjustments. It features a 1-1/2″ spline diameter with 10 splines, a 5-1/2″ arm length, and a 35° body angle for optimal alignment. With 0 offset and a 1/2″ arm hole diameter, the 40020236 is a dependable choice for fleets requiring precision and durability in demanding conditions.

Technical Specifications:

  • Spline Diameter – Spline Count: 1-1/2″ – 10
  • Arm Length: 5-1/2″
  • Body Angle: 35°
  • Offset: 0
  • Arm Hole Diameter: 1/2″

Key Features:

  • Automatic slack adjustment with Haldex S‑ABA system
  • 10-spline, 1-1/2″ diameter for secure fit
  • 5-1/2″ arm for standard brake configurations
  • 35° body angle ideal for angled setups
  • Maintenance-reducing design for enhanced brake reliability
