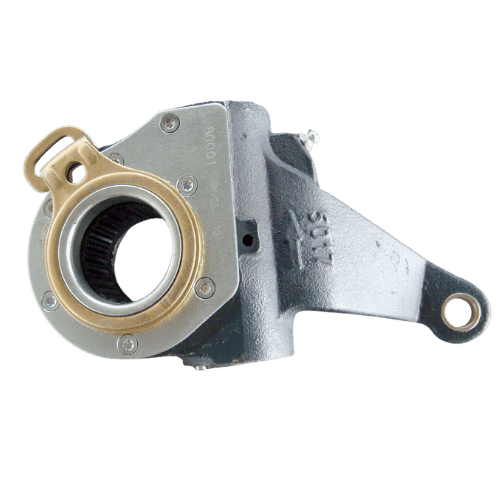

80001 Haldex S-ABA Automatic Slack Adjuster

The 80001 Haldex S‑ABA Automatic Slack Adjuster is engineered for Daimler commercial vehicles to ensure optimal, self-adjusting brake operation. Featuring Haldex’s proven S‑ABA system, this unit automatically maintains correct brake clearance, helping reduce wear, downtime, and maintenance needs. With a 26-tooth spline (DIN 5480), +56 mm offset, and a +15° inclination, it delivers accurate brake alignment. The compact double-bent control arm (short, R = 65 mm) fits into tight brake assemblies, making it ideal for demanding fleet environments where precision and durability matter.

Technical Specifications:

• Boxed: No
• Casting: 5017
• Control Unit: 74527
• Spline Type: N42x1.5x13H (DIN 5480)
• Application: Daimler
• Number of Holes: 1
• Length (L1): 145 mm
• Spline Teeth: 26
• Bushing: 14 mm
• Offset: +56 mm
• Inclination: +15°
• Control Arm: Double bent (short; R = 65 mm)

Key Features:

• Self-adjusting Haldex S‑ABA brake system
• Designed for Daimler commercial vehicle platforms
• DIN 5480-compliant 26-spline fitment
• +56 mm offset and +15° inclination for precise positioning
• Short, double-bent R65 control arm for compact setups
• Boosts reliability, reduces manual maintenance, and improves brake longevity

‍
