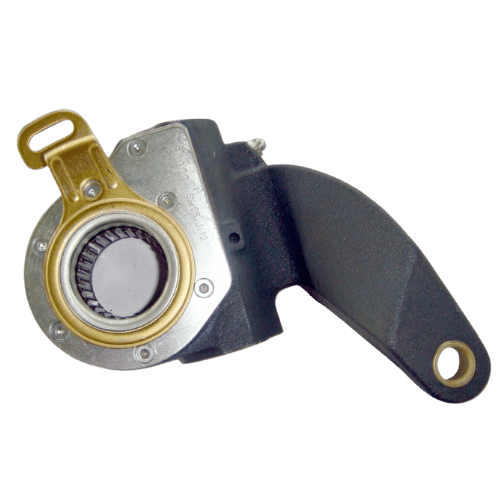

80009 Haldex S-ABA Automatic Slack Adjuster

Slack Adjuster - 80009 Haldex S-ABA Automatic Slack Adjuster

The 80009 Haldex S‑ABA Automatic Slack Adjuster is expertly designed for Daimler commercial vehicles, providing dependable and maintenance-free brake adjustment. Utilizing Haldex’s advanced S‑ABA technology, it automatically maintains proper brake shoe clearance, improving safety and extending brake life. This model features a 26-tooth spline with a DIN 5480 configuration, -37 mm offset, and a +34° inclination—ideal for precise alignment in specific brake assemblies. The medium double-bent control arm (R = 78 mm) allows flexibility in tighter or mid-sized installations, making this unit a durable and high-performance choice for fleet operators.

Technical Specifications:

  • Boxed: No
  • Casting: 5015
  • Control Unit: 74528
  • Spline Type: N42x1.5x13H (DIN 5480)
  • Application: Daimler
  • Number of Holes: 1
  • Length (L1): 145 mm
  • Spline Teeth: 26
  • Bushing: 14 mm
  • Offset: -37 mm
  • Inclination: +34°
  • Control Arm: Double bent (medium; R = 78 mm)

Key Features:

  • Self-adjusting brake performance with Haldex S‑ABA system
  • Designed for Daimler heavy-duty applications
  • 26-spline DIN 5480 standard ensures precise engagement
  • -37 mm offset and +34° inclination support unique alignments
  • Medium R78 double-bent control arm for versatile installation
  • Enhances safety, reduces downtime, and minimizes brake maintenance
