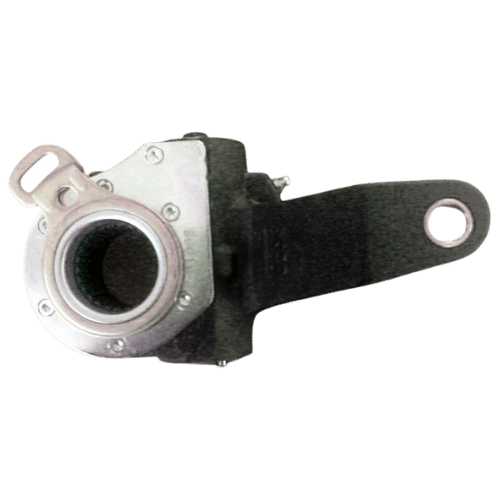

80010 Haldex S-ABA Automatic Slack Adjuster

The 80010 Haldex S‑ABA Automatic Slack Adjuster is designed for Daimler heavy-duty commercial vehicles, offering consistent brake performance through self-adjusting technology. With Haldex's S‑ABA system, it automatically maintains correct brake shoe clearance, reducing manual maintenance and enhancing vehicle safety. This model features a 26-tooth spline (DIN 5480 standard), -56 mm offset, and a -5° inclination, making it suitable for reverse-alignment installations. Its compact double-bent control arm (R = 65 mm) is optimized for tight mounting areas, delivering reliability in both performance and fit.

Technical Specifications:

• Boxed: No
• Casting: 5020
• Control Unit: 74527
• Spline Type: N42x1.5x13H (DIN 5480)
• Application: Daimler
• Number of Holes: 1
• Length (L1): 145 mm
• Spline Teeth: 26
• Bushing: 14 mm
• Offset: -56 mm
• Inclination: -5°
• Control Arm: Double bent (short; R = 65 mm)

Key Features:

• Self-adjusting brake clearance with Haldex S‑ABA technology
• Engineered for Daimler heavy-duty vehicle platforms
• 26-spline DIN-standard configuration ensures precise engagement
• -56 mm offset and -5° inclination ideal for reverse-fit setups
• Compact R65 control arm suits space-restricted applications
• Increases safety, reduces maintenance, and improves brake system longevity

‍
