80011 Haldex S-ABA Automatic Slack Adjuster

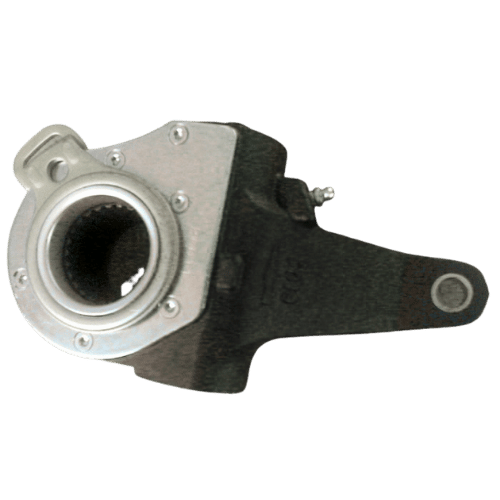

The 80011 Haldex S‑ABA Automatic Slack Adjuster is engineered for Daimler heavy-duty vehicles, providing dependable brake performance with automatic adjustment. Utilizing Haldex’s S‑ABA system, it maintains optimal brake clearance without manual tuning, improving safety and reducing wear. The unit features a 26-tooth spline (DIN 5480 standard), +56 mm offset, and a -5° inclination—ideal for configurations requiring reverse-angle alignment. The short double-bent control arm (R = 65 mm) allows for seamless installation in compact brake systems. Built for durability and precision, the 80011 is a smart solution for fleet efficiency.

Technical Specifications:

• Boxed: No
• Casting: 5019
• Control Unit: 74527
• Spline Type: N42x1.5x13H (DIN 5480)
• Application: Daimler
• Number of Holes: 1
• Length (L1): 145 mm
• Spline Teeth: 26
• Bushing: 14 mm
• Offset: +56 mm
• Inclination: -5°
• Control Arm: Double bent (short; R = 65 mm)

Key Features:

• Self-adjusting S‑ABA brake system enhances safety and lifespan
• Designed specifically for Daimler heavy-duty applications
• 26-spline DIN 5480 fitment for secure and precise installation
• +56 mm offset and rare -5° inclination for unique alignments
• Compact R65 double-bent arm for tight-space configurations
• Minimizes manual maintenance and maximizes performance reliability

‍
