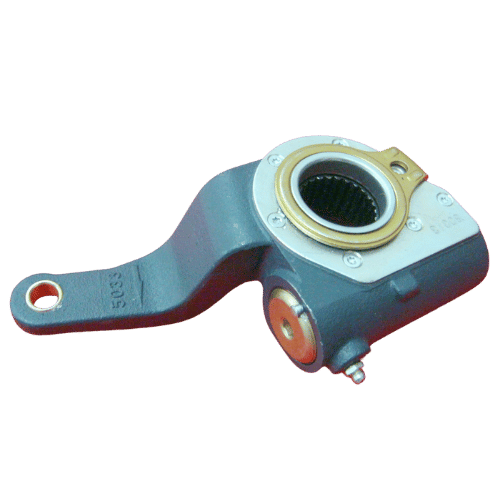

80013 Haldex S-ABA Automatic Slack Adjuster

The 80013 Haldex S‑ABA Automatic Slack Adjuster is purpose-built for Daimler heavy-duty vehicles, offering reliable, self-regulating brake performance with minimal maintenance. Engineered with 26 splines conforming to DIN 5480 standards, it ensures secure and accurate engagement. With a +42 mm offset and a +105° inclination, it accommodates specialized brake configurations while maintaining proper alignment. The short double-bent control arm (R = 65 mm) allows for installation in compact spaces. Haldex’s S‑ABA technology automatically maintains correct shoe-to-drum clearance, helping extend component life and reduce downtime in demanding fleet environments.

Technical Specifications:

• Boxed: No
• Casting: 5033
• Control Unit: 74527
• Spline Type: N42x1.5x13H (DIN 5480)
• Application: Daimler
• Number of Holes: 1
• Length (L1): 145 mm
• Spline Teeth: 26
• Bushing: 14 mm
• Offset: +42 mm
• Inclination: +105°
• Control Arm: Double bent (short; R = 65 mm)

Key Features:

• Self-adjusting slack adjuster using Haldex S‑ABA technology
• Engineered for Daimler commercial vehicle applications
• 26-spline DIN-standard connection ensures precise fit
• Unique +105° inclination for specialized brake configurations
• Compact, double-bent control arm (R65) for tight installations
• Reduces maintenance needs and enhances braking reliability
• Trusted Haldex quality for long-lasting fleet performance

‍
