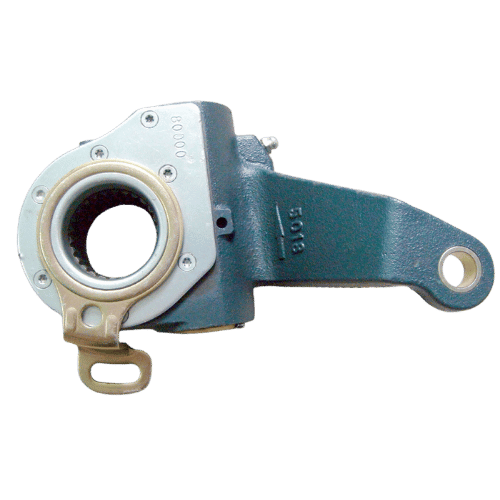

Haldex S-ABA Automatic Slack Adjuster 80000

The Haldex S‑ABA Automatic Slack Adjuster 80000 is engineered to deliver reliable, maintenance-free brake performance for Daimler heavy-duty vehicles. Equipped with Haldex’s advanced S‑ABA system, this adjuster automatically maintains optimal brake shoe clearance, ensuring enhanced safety and reduced downtime. Designed with a 26-tooth DIN 5480 spline, -56 mm offset, and +15° inclination, it provides precise alignment for specific axle configurations. The short, double-bent control arm (R = 65 mm) allows for easy installation in space-limited brake setups, making it a durable and efficient choice for fleet operations.

Technical Specifications:

• Boxed: No
• Casting: 5018
• Control Unit: 74527
• Spline Type: N42x1.5x13H (DIN 5480)
• Application: Daimler
• Number of Holes: 1
• Length (L1): 145 mm
• Spline Teeth: 26
• Bushing: 14 mm
• Offset: -56 mm
• Inclination: +15°
• Control Arm: Double bent (short; R = 65 mm)

Key Features:

• Self-adjusting slack adjuster with Haldex S‑ABA technology
• Tailored for Daimler commercial vehicles
• DIN-standard 26-spline design for secure fit
• -56 mm offset and +15° angle for specialized brake setups
• Compact double-bent arm for tight installations
• Improves brake reliability, safety, and reduces maintenance intervals

‍
