The evolution of air brakes has continuously driven improvements in commercial vehicle safety and performance. While traditional drum brake systems have long been the industry standard, a modern technology is gaining traction: air-disc calipers. These advanced brake calipers represent a significant step forward, offering enhanced stopping power, superior heat dissipation, and simplified maintenance. By moving away from the complex internal mechanisms of drum brakes, this system provides a more responsive and reliable solution that is well-suited to the demands of modern trucking. As a leading truck brake manufacturer, GAPASA offers this advanced solution to the commercial vehicle market, making them a crucial consideration for fleet managers and drivers who prioritize safety and efficiency.

The Operational Principles of Air-Disc Brakes

The air-disc brake system operates on a simple, yet highly effective principle that directly converts air pressure into a powerful clamping force. This is in contrast to the mechanical linkage found in traditional drum brakes.

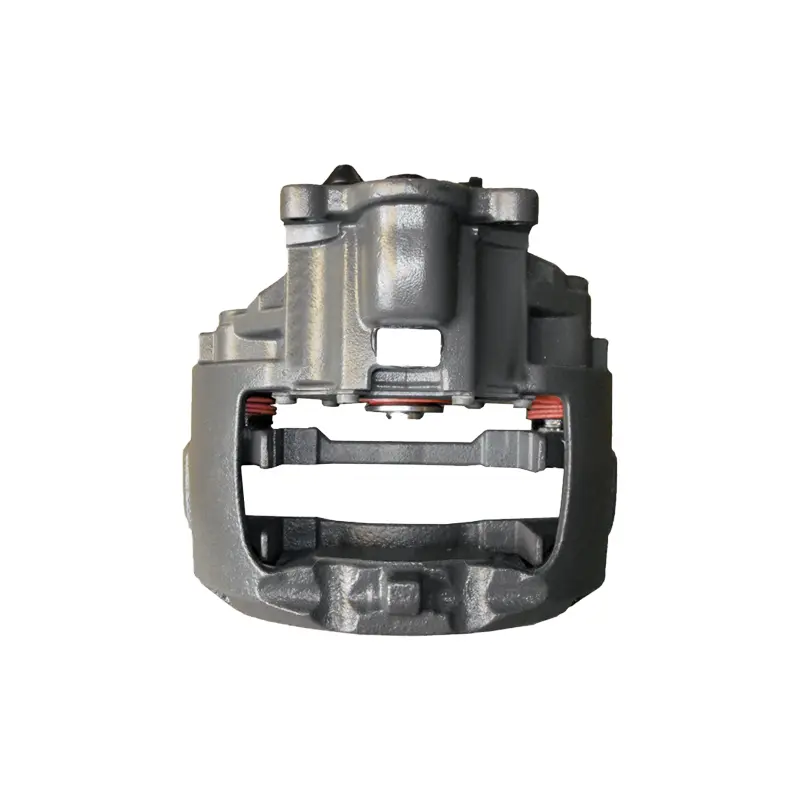

• ‍The Caliper and Rotor: At the heart of the system is a brake caliper that houses two brake pads. These pads are positioned on either side of a rotating rotor, which is mounted to the wheel hub. When the brakes are applied, the caliper clamps the pads onto the rotor.‍

• Pneumatic Actuation: Instead of a complex pushrod and S-camshaft mechanism, air-disc brakes use a pneumatic actuator. Compressed air from the truck's air brakes system enters the caliper's actuator, which then pushes a piston. This piston clamps the pads onto the rotor with immense force, creating the friction necessary to slow and stop the vehicle.‍

• Direct-Acting Force: One of the main benefits of this design is that the force is applied directly and evenly to the pads. This direct action provides a consistent and powerful braking experience, which is a key differentiator from drum brake systems.

Key Advantages over Traditional Drum Brakes

The shift from drum to disc brakes in the heavy-duty sector is driven by several performance and maintenance benefits that are becoming increasingly important for fleet operations. While drum brakes, which use brake shoes pressed against a drum, are still common, air-disc calipers offer notable improvements.

• ‍Superior Heat Dissipation: During repeated or heavy braking, heat build-up can cause brake fade, a reduction in stopping power. The open design of air-disc calipers allows for much better airflow, dissipating heat more efficiently than a closed drum system. This makes them ideal for applications requiring frequent braking, such as long descents or urban driving.‍

• Enhanced Stopping Power and Stability: Air-disc brakes provide a more powerful and responsive braking force. The clamping action of the brake calipers is highly effective, leading to shorter stopping distances. This is a critical safety advantage, especially in emergency situations. The uniform force application also contributes to greater stability during hard braking. The even distribution of braking force across the pads and rotor also helps prevent uneven wear, ensuring a balanced stopping experience.‍

• Elimination of Complex Linkages: A traditional drum brake system relies on a mechanical linkage that includes a brake chamber, slack adjusters, and an S-camshaft. This system, while effective, can be prone to wear and requires frequent adjustment. An automatic slack adjuster of trucks can help, but the air-disc system simplifies the mechanism entirely, eliminating the need for these parts. This reduction in moving parts not only simplifies the system but also reduces the number of potential points of failure.‍

• Simplified Maintenance: Maintenance on air-disc brake systems is significantly easier and faster. Replacing brake pads is a straightforward process that can be done without removing the wheel hub, and there are no slack adjusters to manually check. A brake chamber replacement is also not a concern with disc brakes. This simplifies maintenance schedules and reduces vehicle downtime. The ease of visual inspection is another major benefit, as brake pad wear is clearly visible without needing to disassemble the system, which is a huge advantage for pre-trip safety checks.

Drum and Disc Comparison

Understanding the differences between these systems is crucial for any fleet manager. While both utilize compressed air, they achieve braking in fundamentally different ways. The following points illustrate the key distinctions:

• ‍The Brake Chamber: In a drum brake system, the brake chamber extends a pushrod to rotate the S-camshaft. In an air-disc system, the chamber is integrated into the brake calipers as an actuator, which directly moves the brake pads.‍

• Slack adjusters: The primary function of a slack adjuster is to maintain the correct clearance between the brake shoes and the drum. A semi truck slack adjuster needs to be periodically checked to ensure it is functioning correctly. In contrast, air-disc brakes have an internal self-adjusting mechanism that automatically compensates for pad wear, eliminating the need for this external component.‍

• Brake Calipers: The term brake calipers can refer to both drum and disc systems, but their design is vastly different. heavy duty brake calipers for a disc system are a much more compact and efficient unit. They also have a more open design, which facilitates easier inspection.‍

• Brake Shoes and Pads: Drum brakes use curved brake shoes that press against the inside of a drum. Air-disc brakes use flat pads that clamp onto a rotor. This difference in design is key to the improved performance of the disc system.

While a mechanic working on older systems may still need tools like a brake line bender for various brake repairs, the air-disc system is designed with a focus on simplicity and ease of service. Many reputable truck brake calipers manufacturers such as GAPASA, are now specializing in this advanced technology, making it easier for fleets to adopt. The robust design and advanced materials used in these new brake calipers and rotors also contribute to their increased durability and lifespan compared to their drum brake counterparts.

Conclusion

The move toward air-disc calipers is a reflection of the industry's increasing focus on safety, efficiency, and reduced operational costs. While the initial investment in this technology may be higher than traditional drum brakes, the long-term benefits in terms of reduced maintenance, improved driver safety, and extended component life often outweigh the initial cost.

GAPASA is committed to supporting the commercial transport industry by providing a full range of parts and equipment for both traditional and modern braking systems. From brake shoes and a brake chamber for older trucks to state-of-the-art air-disc caliper systems, we ensure that every fleet has access to the components needed to maintain a safe and reliable fleet. This dedication to quality is what makes us a trusted partner for fleet managers.

In conclusion, air-disc calipers are not just an upgrade but a significant advancement in braking technology for heavy-duty trucks. Their superior performance, combined with simpler maintenance and a safer design, makes them a compelling choice for fleet managers and drivers. As the industry continues to evolve, embracing these innovations will be key to meeting the growing demands for safer, more efficient, and more reliable commercial transport.

‍
